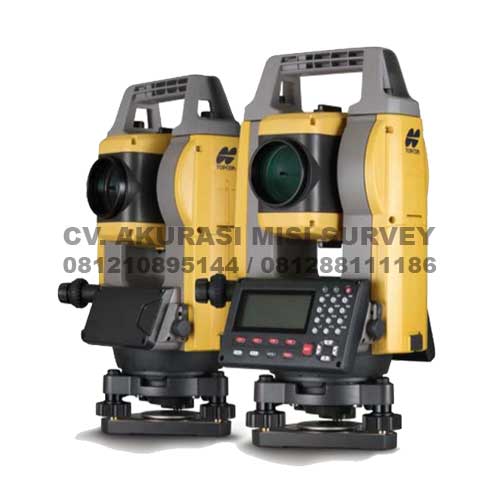

Total Station Topcon GM 50 Series

Daftar Untuk Lihat Harga

Jual Total Station Topcon GM 50 High Quality, High Return!

  • Construction and Survey Application Software
  • Fast & Accurate & Powerful Measuring Distance Feature
  • 500m Long Range Reflectoress Measurement
  • Rugged & Waterproof Design
  • Reliable Large Volume Internal Memory



SKU: GM50 Category:

Jual Total Station Topcon GM 50 Series

Jual Total Station Topcon GM 50  sebuah alat survey yang berfungsi untuk pemetaan dan kontruksi bangunan atau pengukuran lahan tambang dll dan total station merupakan alat yang terinclude dengan theodolite dan komponen untuk pengukur jarak electronik atau bisa di sebut dengan electronic distance meter (EDM).

Total Station Topcon GM 50 Fast and Powerful Reflectorless EDM

  • Fast and accurate pinpointing with phase shift technology.
  • Fast distance measurement of 0.9s regardless of object.
  • Minimum reflectorless measuring distance – just 30cm.
  • Improved collimation with super-bright pointer.
  • Smaller EDM beam spot size for minimal distance
    measuring error.
  • Dependable measuring even at shallow incidence angles.
  • Ensures accurate reflective sheet distance measurement.

jual total station topcon gm 50 52 55

Total Station Topcon GM 50 High Quality, High Return!

  • Construction and Survey Application Software
  • Fast & Accurate & Powerful Measuring Distance Feature
  • 500m Long Range Reflectoress Measurement
  • Rugged & Waterproof Design
  • Reliable Large Volume Internal Memory

Spesifikasi Total Station Topcon GM 50 Series

ModelGM-52GM-55
Telescope
Magnification / Resolving power 30x / 2.5″
OthersLength : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm
(1.9in.) for EDM), Image: Erect, Field of view: 1°30′ (26m/1,000m),
Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness levels
Angle measurement
Minimum Display1”/5” (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001)2″ 5″
Dual-axis compensator /Dual-axis liquid tilt sensor, working range: ±6′
Collimation compensationOn/Off (selectable)
Distance measurement
Laser output*1Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
Measuring range     Reflectorless*30.3 to 500m (1,640ft.)
(under average       Reflective sheet*4*5RS90N-K: 1.3 to 500m (4.3 to 1,640ft.),
conditions*2)RS50N-K: 1.3 to 300m (4.3 to 980ft.),
RS10N-K: 1.3 to 100m (4.3 to 320ft.)
Mini prism
One prism
1.3 to 500m (4.3 to 1,640ft.)
1.3 to 4,000m (4.3 to 13,320ft)
Minimum Display                                   Fine / Coarse : 0.0001m (0.001ft. / 1/8 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable)
Coarse : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1 in.) (selectable)
Tracking / Road : 0.01m (0.02ft. / 1 in.)
Accuracy*2                         Reflectorless*3(2 + 2ppm x D) mm*6
(ISO 17123-4:2001) Reflective sheet*4*5(2 + 2ppm x D) mm
(D=measuring distance in mm)     Prism*7(1.5 + 2ppm x D) mm
Measuring time*8         Fine0.9s (initial 1.5s)
Coarse0.6s (initial 1.3s)
Tracking0.4s (initial 1.3s)
OS, Interface and Data management
Operating systemLinux
Display / KeyboardGraphic LCD, 192 x 80 dots, backlight : on/off (Selectable) /
Alphanumeric keyboard / 28 keys with backlight
Control panel locationOn both faces                          On single face
Data storage          Internal memory
Plug-in memory device
Approx. 50,000 points
USB flash memory (max. 32GB)
InterfaceSerial RS-232C, USB2.0 (Type A for USB flash memory)
Bluetooth modem (option)*9Bluetooth Class 1.5, Operating range: up to 10m *10

Total Station Topcon GM 50 Japan Quality Products

We perform the tough environmental tests to ensure long-term operation even under the rough site environments.
GM Series total stations are thoroughly inspected with dust-proof and water-proof test chambers.
In addition, the various tests against vibration, drop, temperature, and humidity were successfully passed to achieve the best environmental spec. Also, the measuring distance accuracy test on base line and the instrument leveling and angle accuracy test and adjustment by collimator system ensure your satisfaction on GM Series product quality.

Download Brosur Spesifikasi Jual Total Station Topcon GM 50 Series  Lengkapnya >> KLIK DISINI <<

Jual Total Station Topcon GM 50 Series  dengan Akurasi 2 Detik dan 5 detik dengan harga murah, diskon dan cari produk TOPCON lainnya dari kelompok Total Station. Gratis ongkos pengiriman guna wilayah Jakarta dan bisa dikirim ke semua Indonesia. Dapatkan hanya di toko online www.akurasimisisurvey.co.id, melakukan pembelian barang online gampang dan aman.

Brand

Topcon

Jual Total Station Digital Theodolite Waterpass Automatic Level Digital Level Rotating Laser GPS Geodetik GNSS Receiver Merek Topcon Baru & Bekas Service Kalibrasi Bergaransi Resmi
